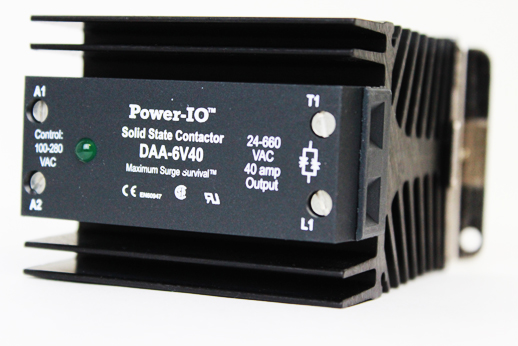

AC Command Signal Input 660V 40A Solid State Relay SSR

Power-IO 40A AC Solid State Relay
Click to enlarge
Price:
$73.00
Brand:
POWER-IO
Weight:
3.00 LBS
Availability:
Usually Ships Within 24 Hours
Shipping:
Calculated at checkout
Quantity:

Product Description

The DAA-6V40 specs are as follows:

AC Activated
Line Voltage: 24-660 VAC
Load Current: .10-40 A RMS
Min Control Voltage & Current Draw: 100VAC/9mA
Max Control Voltage & Current Draw: 280VAC/25mA
Must Release Voltage: 20VDC/2MA



Single phase, 40 amp, din rail contactor

Features

  • Maximum Surge Survival™ technology -- triple layer, voltage surge protection
  • Green LED for input status
  • Thermally optimized heat sink permits edge-to-edge installations on a horizontal din rail
  • Built-in snubber circuit
  • Zero crossing activation -- low EMI, low noise to nearby electronics
  • Internal 50A thyristors for high inrush capability

  • 4000 volt isolation, 1400 blocking voltage
  • 1000 volt / microsecond immunity
  • Highest thermal efficiency -- less than 1.0 watts dissipated per amp switched
  • CE, UL recognized, CSA
  • Industry standard A1, A2, L1, T1 terminal numbers
  • High density design permits more amps per square inch

For more information on our Solid State Relay products, visit the POWER-IO section of our site.
