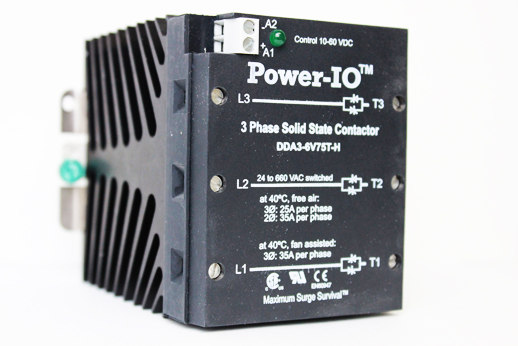

Three phase, 25 or 35 amps per leg, din rail contactor

Features

• Maximum Surge Survival™ technology -- triple layer, voltage surge protection
• Green LED for input status
• Thermally optimized heat sink permits edge-to-edge installations on a din rail
• Built-in snubber circuit Zero crossing activation -- low EMI, low noise to nearby electronics
• Internal 50A SCR thyristors for high inrush capability
• 4000 volt isolation, 1400Vpk blocking voltage
• 1000 volt / microsecond immunity
• Highest thermal efficiency -- less than 1.2 watts per amp switched, per leg
• CE, UL recognized, CSA
• Industry standard A1, A2, L1, T1, L2, T2, L3, T3 terminal numbers High density design permits more amps per square inch
• 3Ø = 25 amps per leg, 2Ø using L1/T1 and L3/T3 = 35 amps per leg.
• Optional: 3 internal MOVs for a fourth layer of surge survival

up to 75 amps TOTAL; 25A on three legs or 35A on 2 legs; 660V max, 10-60 VDC activated
