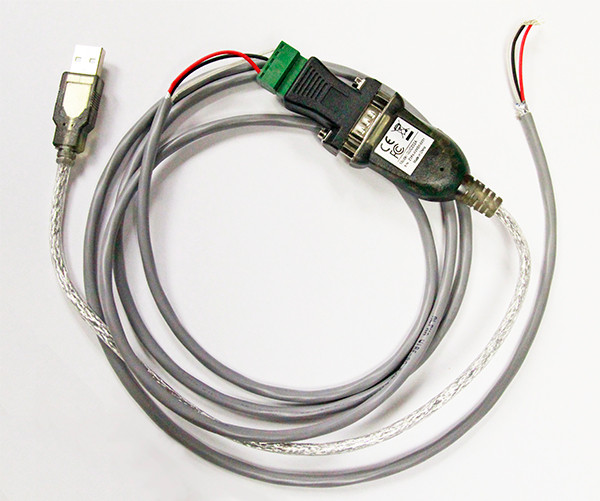

Instructions for installing and using this cable
Please read before purchasing:
This table shows which products are compatible with this cable, and the appropriate communications module for each:
| Controller |
Communications Module |
| 2216e |
SUB22/2AM |
| 2208e |
SUB22/2AM |
| 2204e |
SUB22/2AM |
| 2416 |
SUB24/EIA232 (A2 or AM) |
| 2408 |
SUB24/EIA232 (A2 or AM) |
| 2404 |
SUB24/EIA232 (A2 or AM) |
| 2604 |
SUB24/EIA232 (A2) |
| 2704 |
SUB24/EIA232 (A2) |
| 3216 |
2XL (* see note below) |
| 3208 |
2XL (* see note below) |
| 3204 |
2XL (* see note below) |
| 3508 |
SUB24/EIA232 (A2) |
| 3504 |
SUB24/EIA232 (A2) |
* 3216, 3208, and 3204 controllers are fixed build, meaning you can not add modules after purchasing. If you have one of these units and you want to use this cable, your controller must already have 2XL in the model code.
